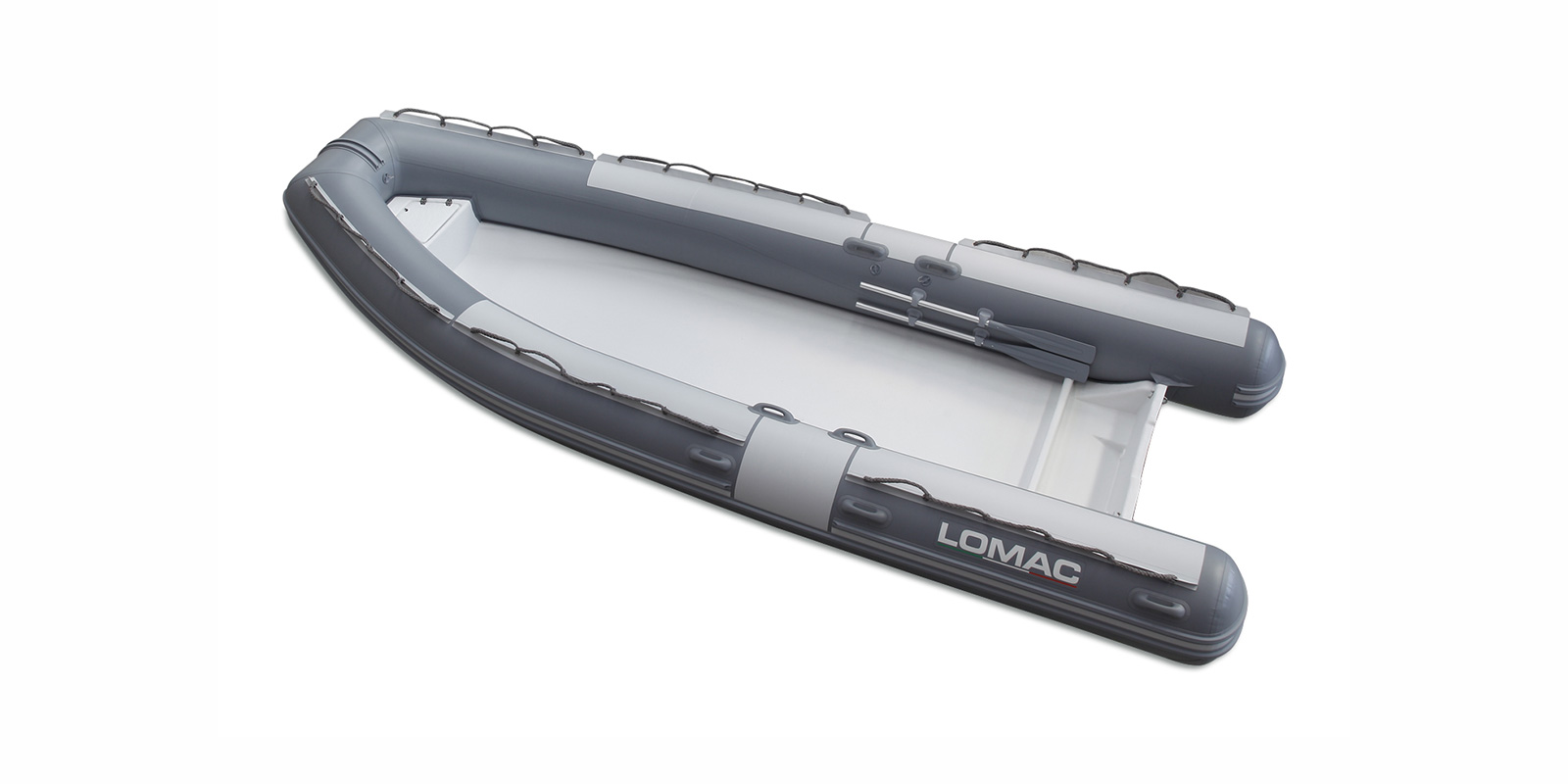

MODEL CLUB 580
TECHNICAL DATA
| Overall lenght (m.) | 5,72 | |
| Overall width (m.) | 2,34 | |
| Inside size (cm.) | 128x460 | |
| Weight (kg.) | 266 | |
| Fabrics tubes | neoprene classical cut | |
| Number of air chambers | 5 | |
| Diameter of tubes (cm.) | 56 | |
| Working pressure bar (atm.) | 0,20 | |
| Hull | monoshell | |
| Person capacity | 13 | |
| Testing power max. (Hp.) | 135 | |
| Suggested power (Hp.) | 80 | |
| Transom height (mm.) | 508 | |
| Type approval design category CE | C | |
|
LOMAC advises that for the figures relative to weights and measures there could be a variation of +/- 3% LOMAC reserves the right to change model characteristics at any time without notice. |
STANDARD EQUIPMENT
- Oars or paddle, inflation pump and repair kit
ACCESSORIES
- Drive console Alisei
- Drive console Zefiro
- Drive console Eolo
- Drive console Jockey Sail
- Drive console Jockey Pro Vibram
- Bolster Egeo
- Ionio Inox sitting
- Alboran Inox sitting
- Bering sitting
- Flores sitting
- Adriatico sitting
- Tirreno sitting
- Hudson sitting
