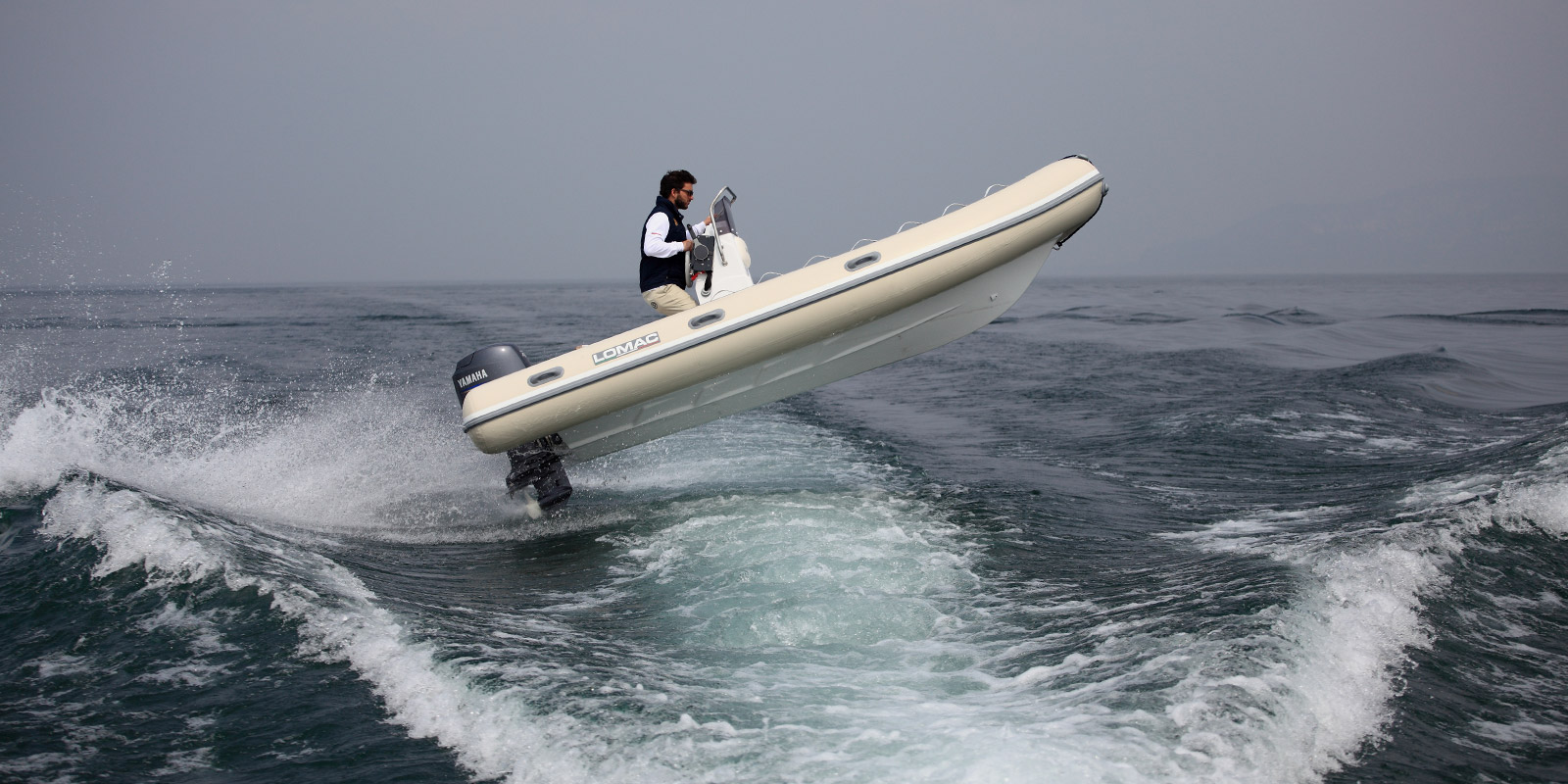

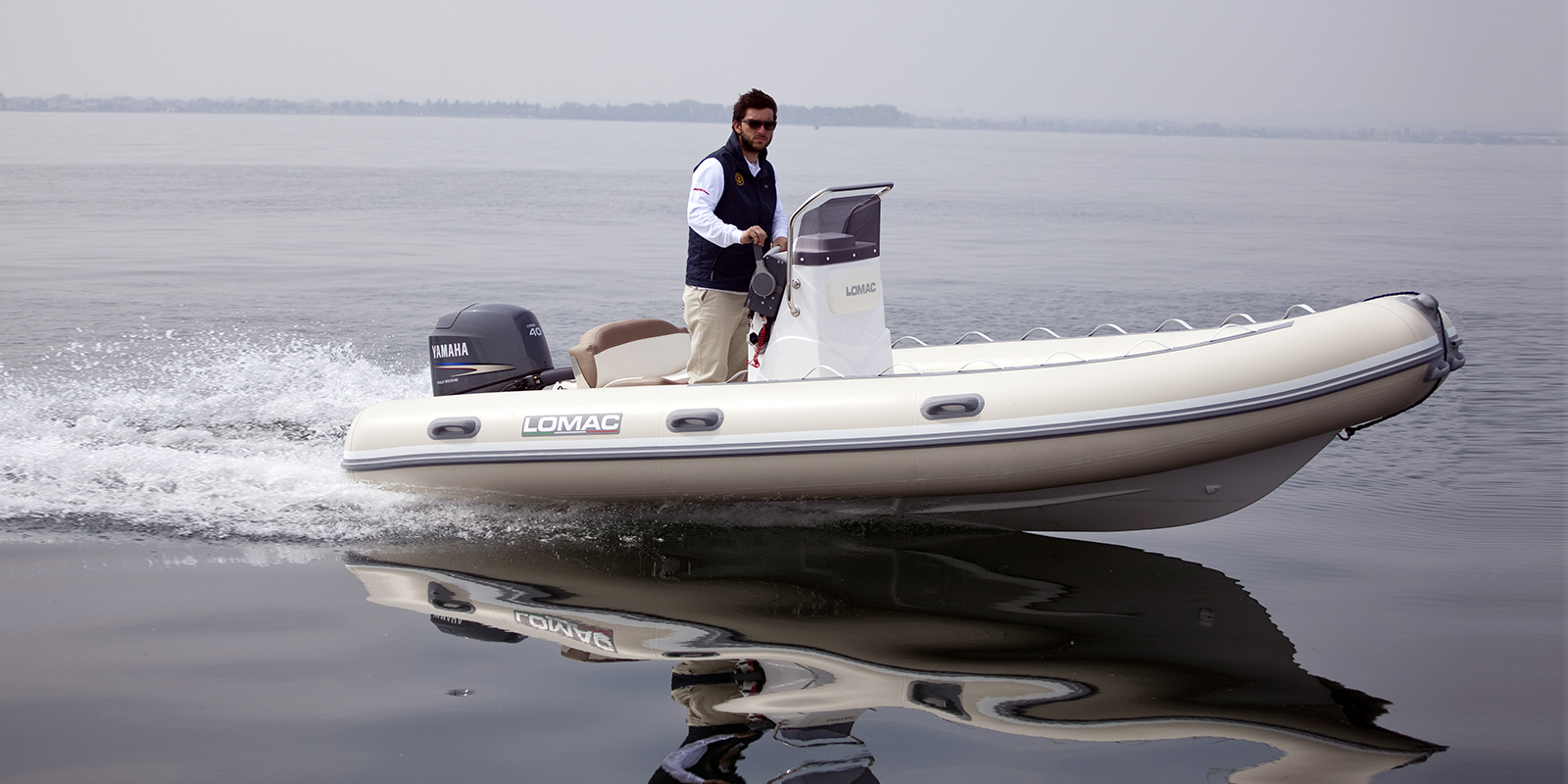

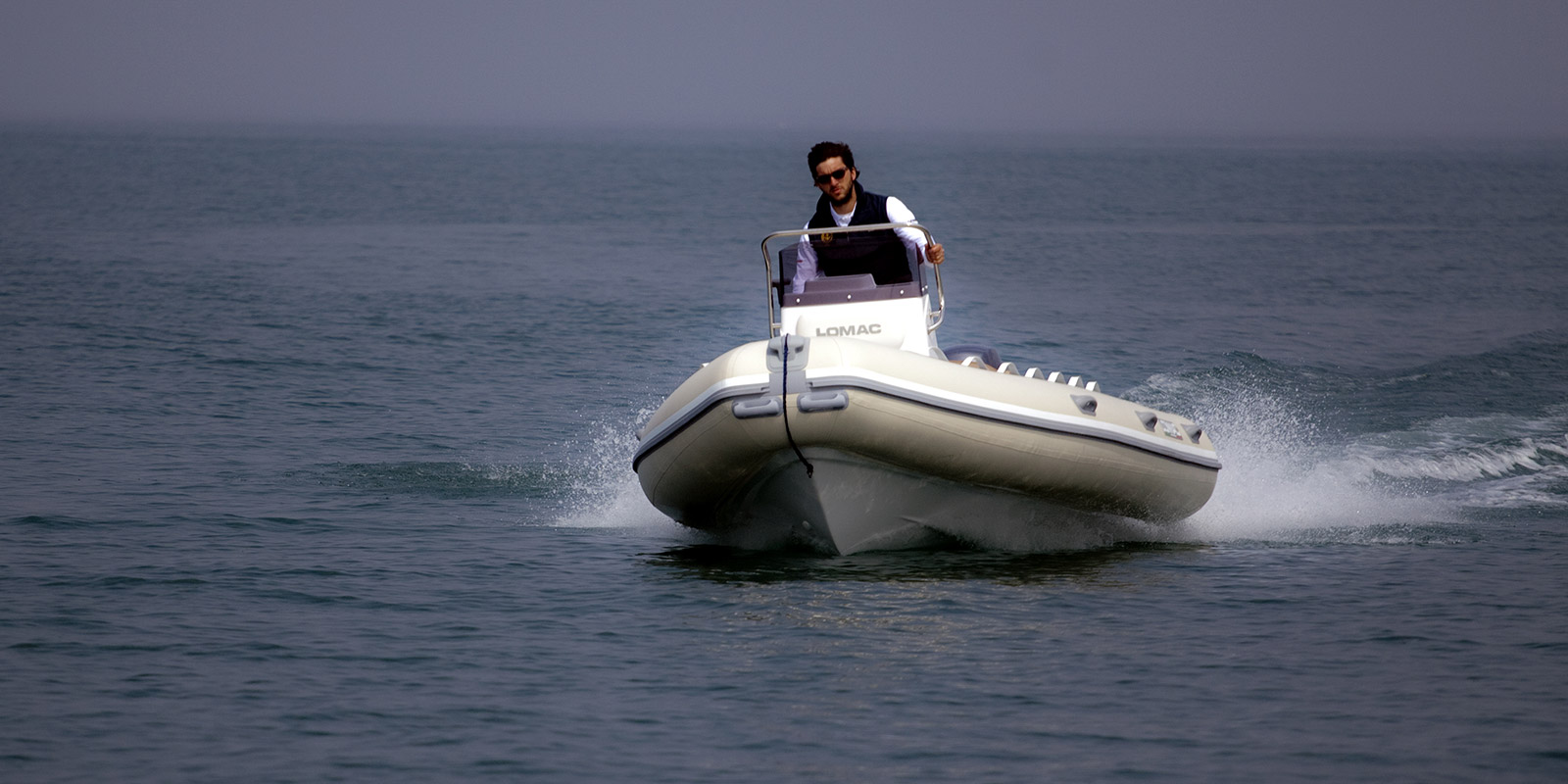

MODEL OK 520
The tubes are made of technical neoprene hypalon fabric Orca Pennel Industries.
PHOTOGALLERY
CUSTOM PHOTO GALLERY

MODEL OK 520 - TECHNICAL DATA

BOTTOMS   twinshell
FABRICS TUBES   neoprene classic style
OVERALL LENGHT m 5,14
OVERALL WIDTH m 2,19
INSIDE SIZE cm 123 x 400
WEIGHT kg 290
N° OF AIR CHAMBERS   5
DIAMETER OF TUBES cm 54
WORKING PRESSURE BAR bar (atm) 0,18
PERSON CAPACITY   8
TESTING POWER MAX hp 90
SUGGESTED POWER hp 70
TRANSOM HEIGHT mm 508
TYPE APPROVAL DESIGN CATEGORY CE   C
Lomac advises that for the figures relative to weights and measures there could be a variation of +/- 3%.
