MODEL IN 560
The tubes are made of technical neoprene hypalon fabric Orca Pennel Industries.

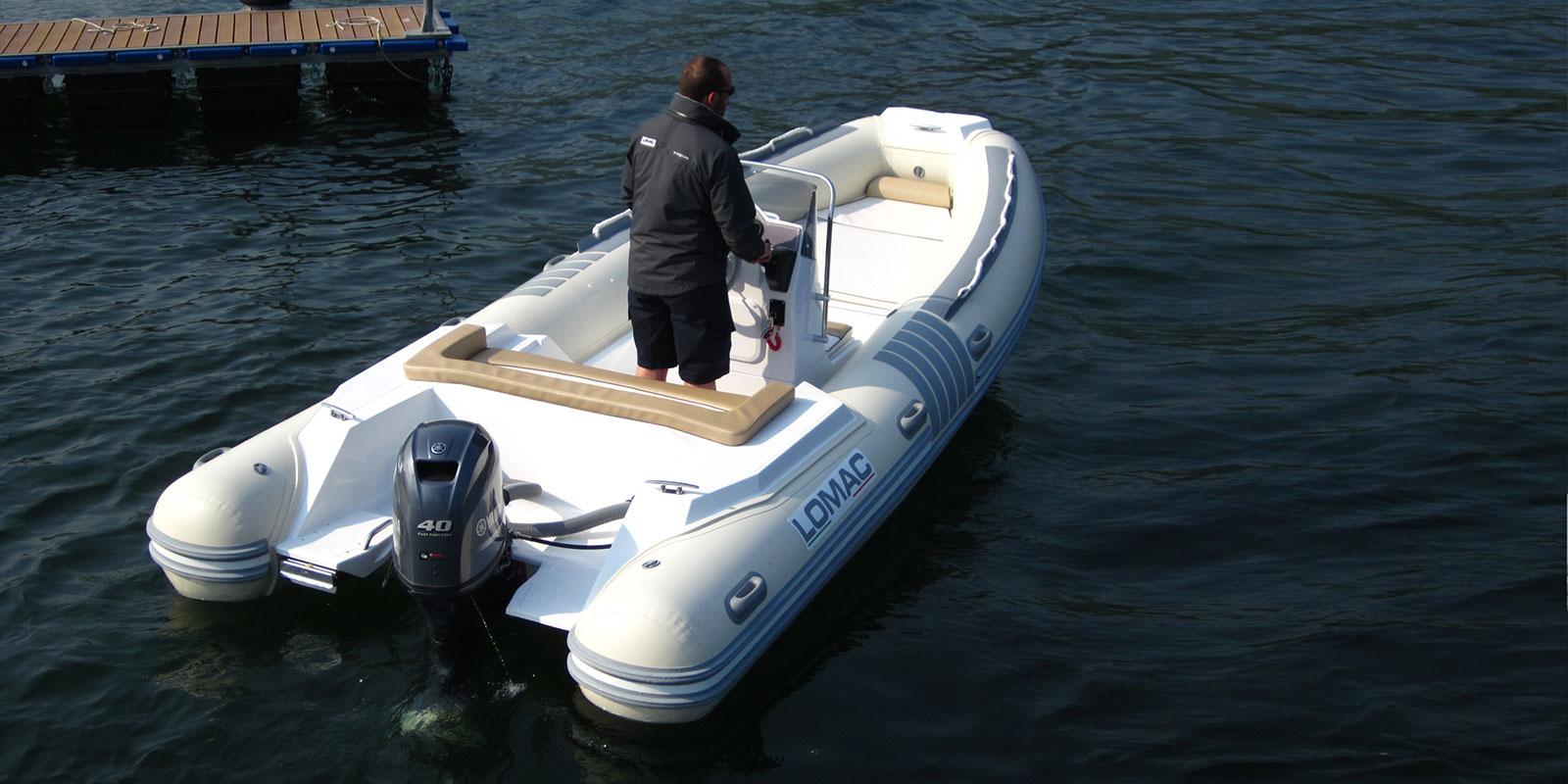

PHOTOGALLERY

MODEL IN 560 - TECHNICAL DATA

BOTTOMS   Twinshell
FABRICS TUBES   classic style
OVERALL LENGHT m 5,55
OVERALL WIDTH m 2,40
INSIDE SIZE cm 124 x 440
WEIGHT kg 380
N° OF AIR CHAMBERS   5
DIAMETER OF TUBES cm 58
WORKING PRESSURE BAR bar (atm) 0,18
PERSON CAPACITY   10
TESTING POWER MAX hp 125
SUGGESTED POWER hp 60
TRANSOM HEIGHT mm 508
TYPE APPROVAL DESIGN CATEGORY CE   C
Lomac advises that for the figures relative to weights and measures there could be a variation of +/- 3%.
