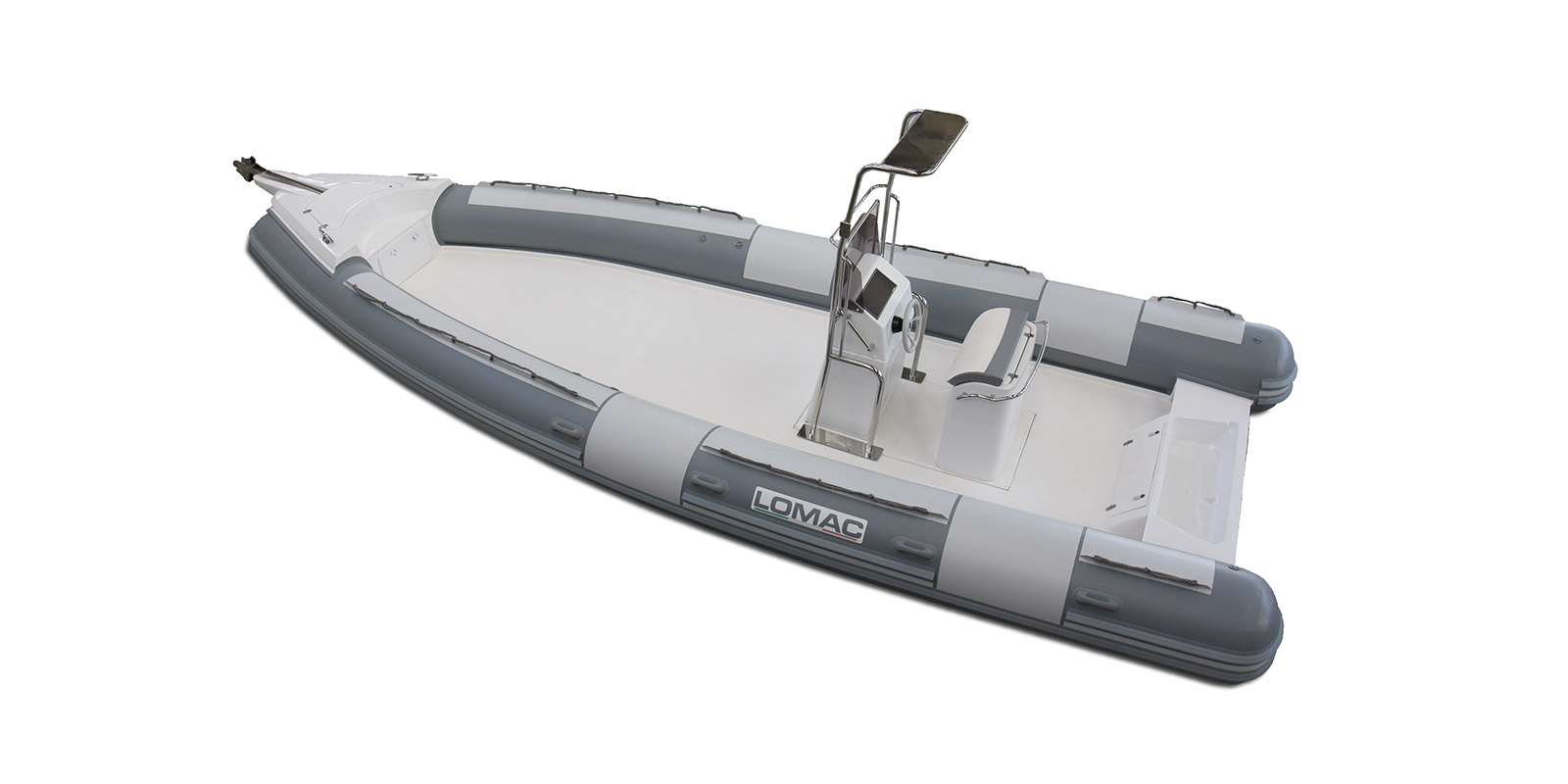

MODEL CLUB 850
The tubes are made of technical neoprene hypalon fabric Orca Pennel Industries.
PHOTOGALLERY

MODEL CLUB 850 - TECHNICAL DATA

BOTTOMS   monoshell
FABRICS TUBES   neoprene classic style
OVERALL LENGHT m 7,98
OVERALL WIDTH m 3,3
INSIDE SIZE cm 197 x 682
WEIGHT kg 1383
N° OF AIR CHAMBERS   6
DIAMETER OF TUBES cm 66
WORKING PRESSURE BAR bar (atm) 0,2
PERSON CAPACITY   26
TESTING POWER MAX hp 313
SUGGESTED POWER hp 2 x 150 - 1 x 300
TRANSOM HEIGHT   1 x 762 mm - 2 x 635 mm
TYPE APPROVAL DESIGN CATEGORY CE
Lomac advises that for the figures relative to weights and measures there could be a variation of +/- 3%.
